Dryer in Lithuania

Dryer for wood shavings

Sawdust dryer - company POLYWOOD Lithuania

At the beginning of this year, we produced and supplied a wood shavings dryer, type TARPO BS-24L, to a  Lithuanian customer.

This dryer is designed as one-storey and customer will use it as a part of a line for production of wood pellets for heating.

Dryer is made of stainless material and is placed in the production hall together with other technology.



Dryer parameters BS-24L
Amount of dried material 2 t/hour
Material input humidity 20 %
Material output humidity 10 %
Dryer dimensions  l x w x h 13 x 2,4 x 2,9 m
Layer of dried material in dryer 0,3 - 0,4 m




Hopper of wet material to the dryer

Filling of wet material to the dryer and limit sensor

Dryer - hopper and control system

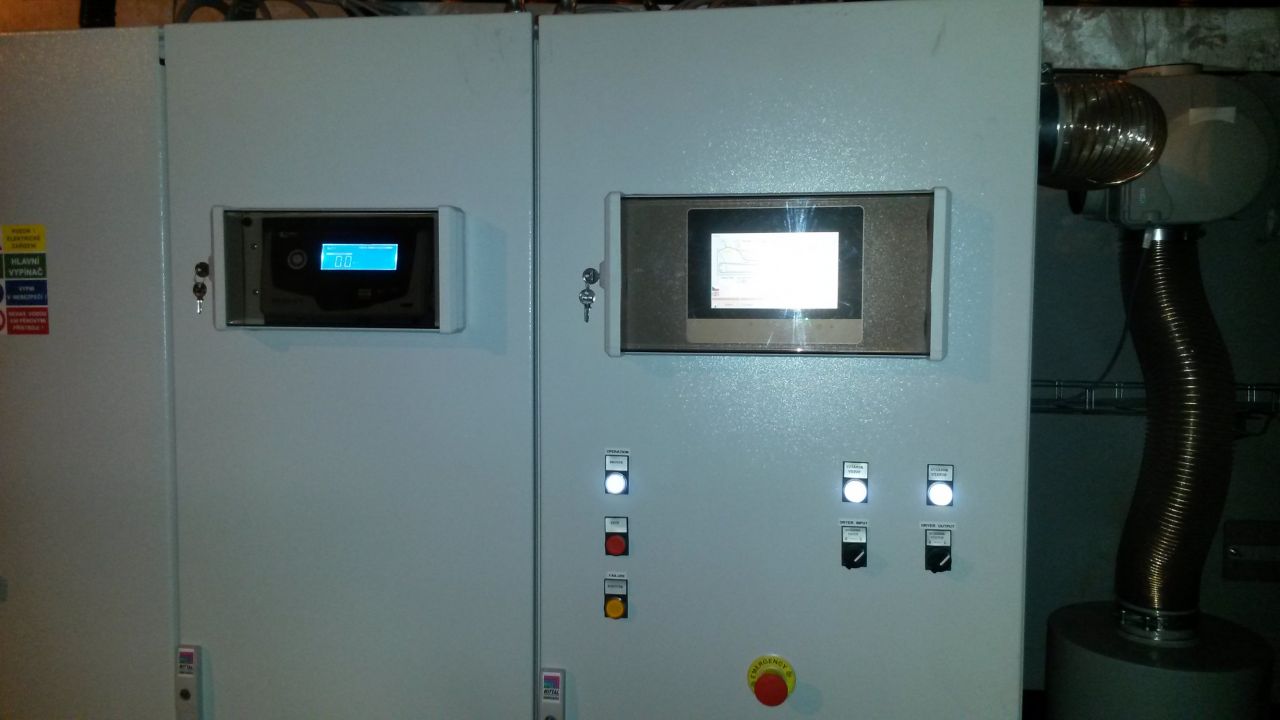

Dryer and control system

Control buttons and Central Stop

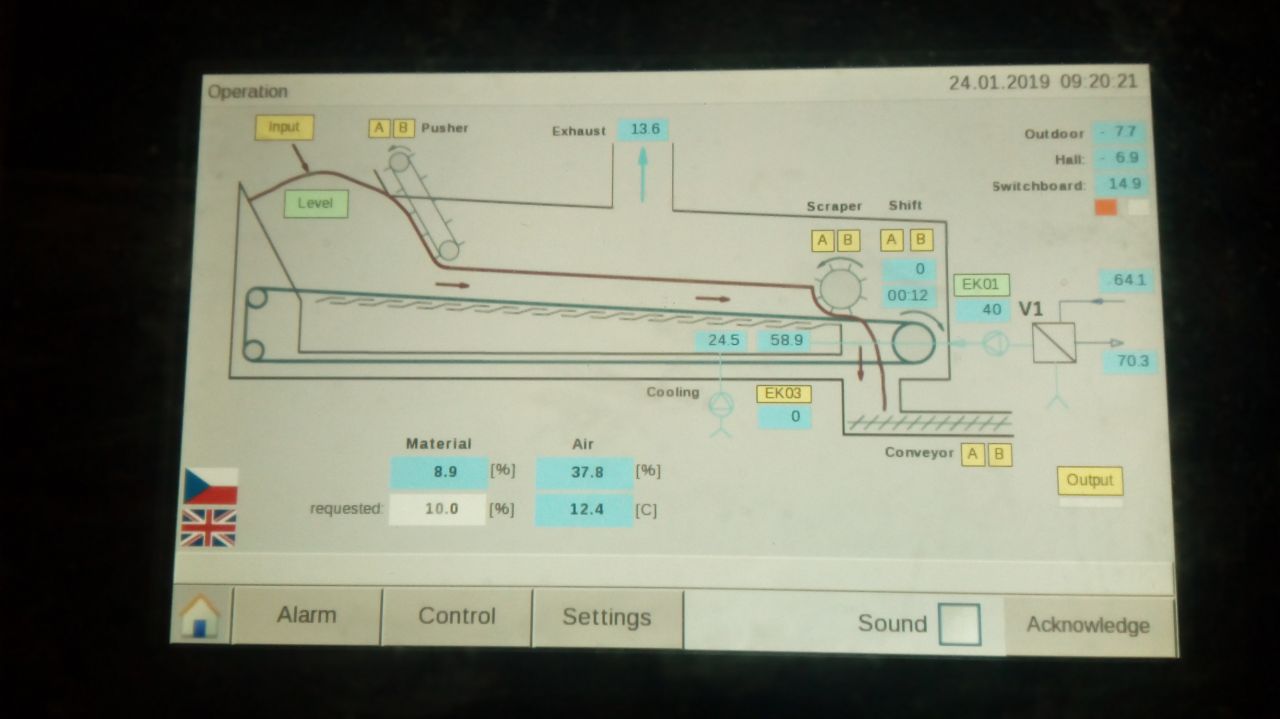

Dryer operation is monitored by control system

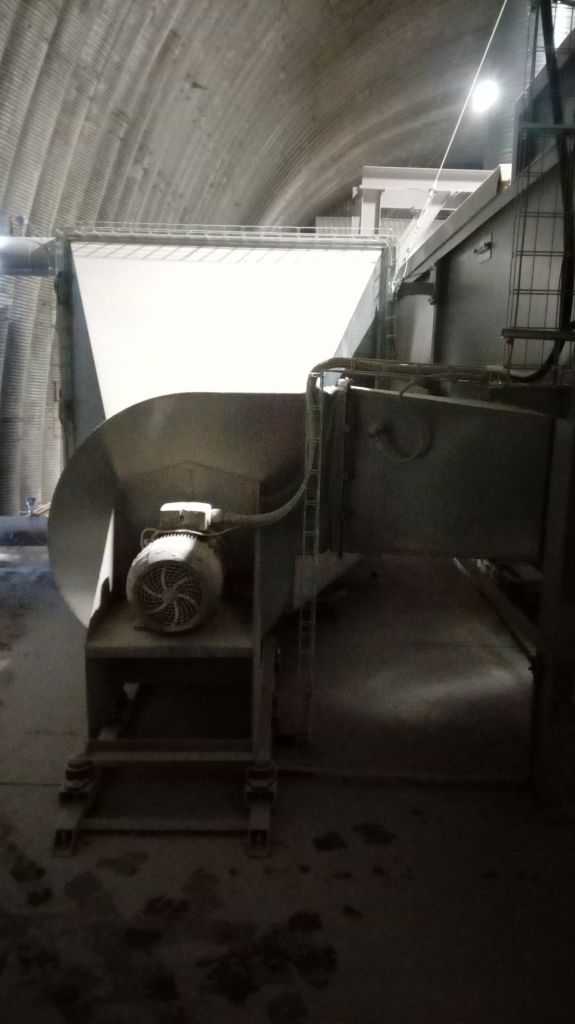

Ventilators and air-conditioning

Air filter with ventilator

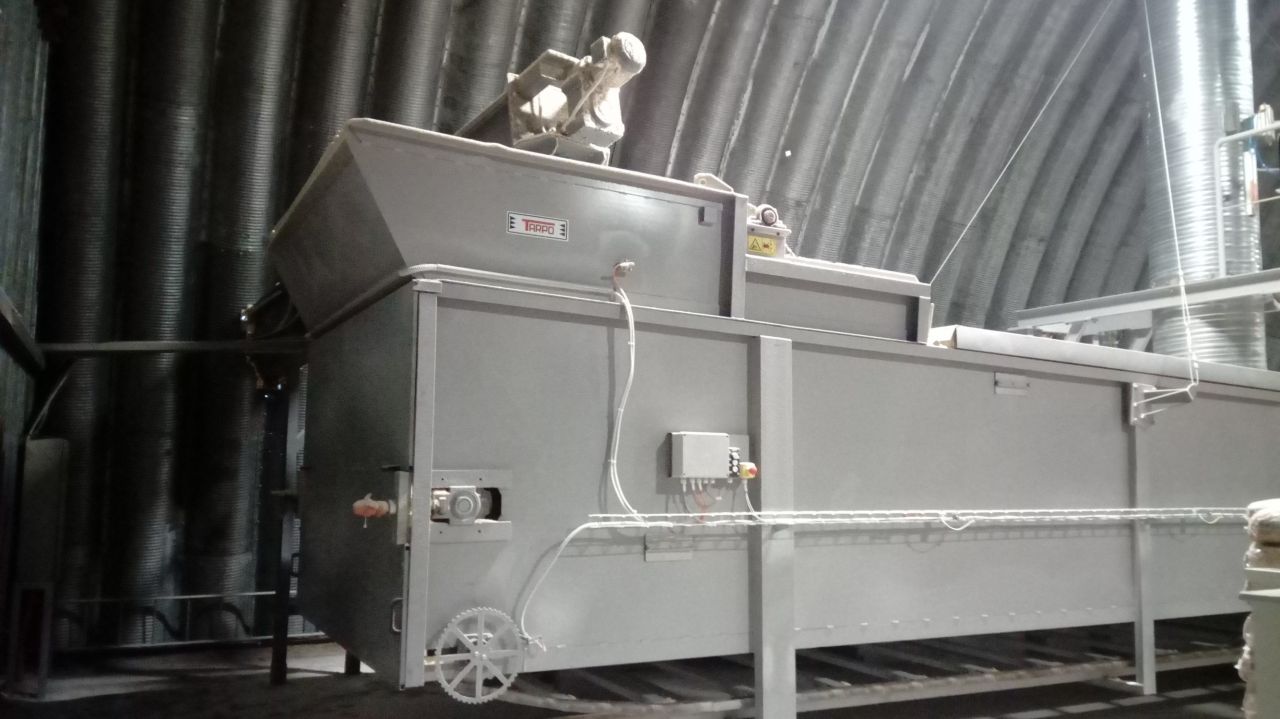

Side view of dryer

Dryer in operation - active sensors

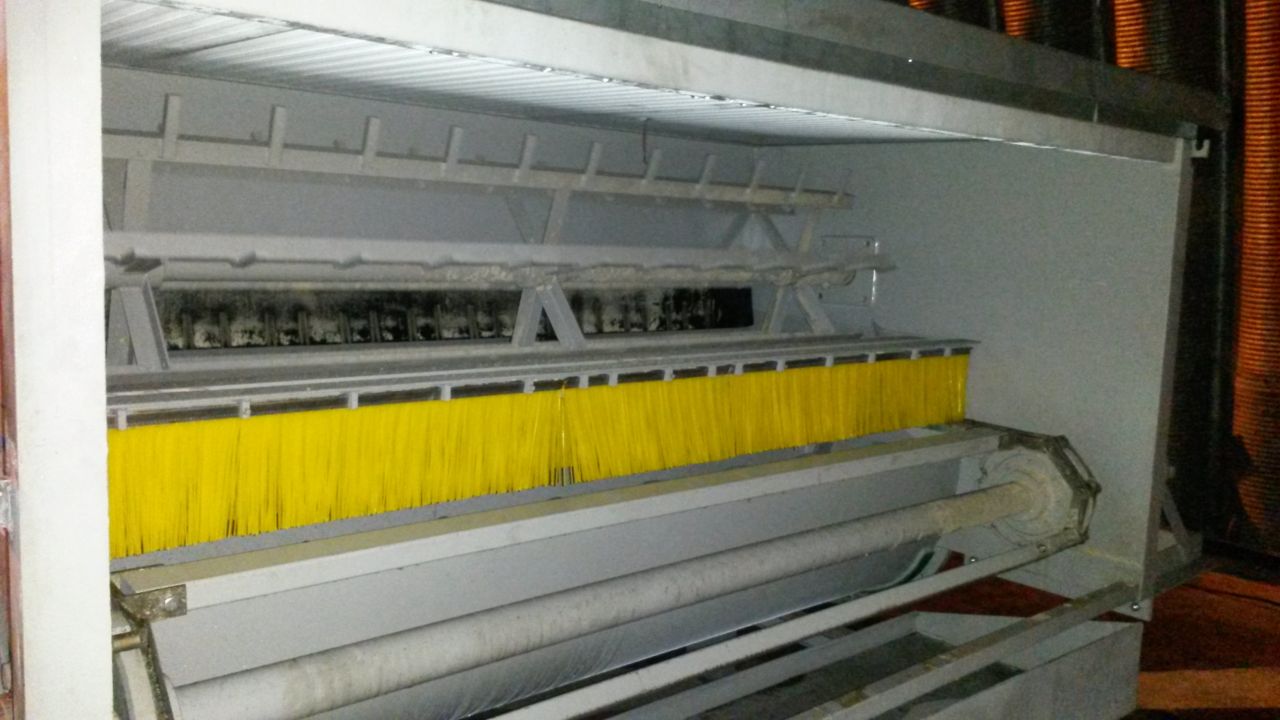

Rakes and output from the dryer

Output of dry material to the silo

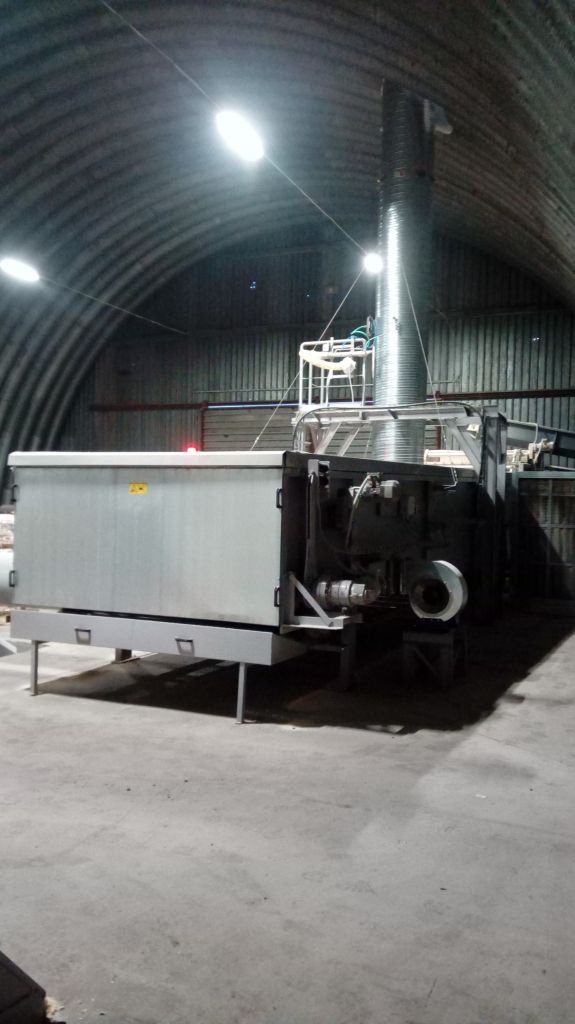

Sawdust dryer is placed in the hall

Mouth of chimney from roof of the hall

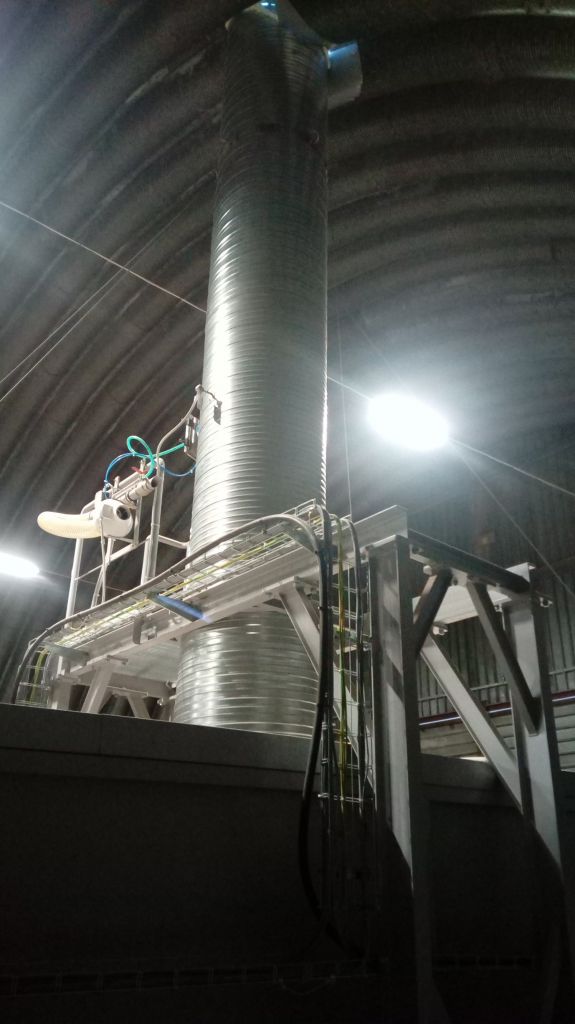

Roof of dryer and a chimney

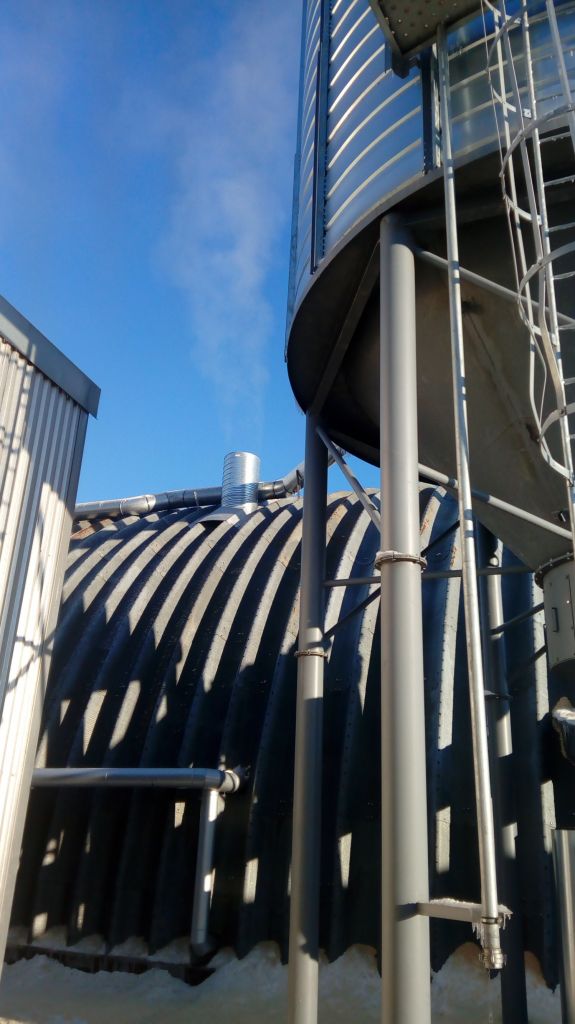

Hall with the outlet of the chimney of dryer - no emissions in the air
